Keyence FS-N41P Digital Fiber Optic Sensor Amplifier
Manufacturer :KEYENCE
Product No. : FS-N41P
-
Description:
The Keyence FS-N41P is a cable-type main unit digital fiber amplifier within the FS-N series fiber sensor family. This amplifier supports compatible fiber optic sensing heads for diffuse, through-beam and reflective detection solutions.
Equipped with a dual-digit digital display and operation buttons for intuitive threshold setting, the unit provides eight adjustable response speed modes to balance detection speed and anti-interference performance. It adopts PNP open-collector switching output and built-in comprehensive protection circuits. Multiple amplifiers can be mounted side-by-side with anti-interference function enabled to prevent mutual signal disturbance. The compact polycarbonate housing supports DIN rail installation, widely applied for precise small object detection inside space-limited automated equipment.
Detail:
| Parameter | Specification |
| Model Number | FS-N41P |
| Brand | Keyence |
| Series | FS-N Digital Fiber Optic Amplifier Series |
| Unit Type | Cable Type, Main Unit |
| Output Type | PNP Open Collector |
| Number of Control Output | 1 channel |
| Light Source | Red four-element LED, 660 nm |
| Response Speed Modes | 23 µs (S-HSPD) / 50 µs (HSPD) / 250 µs (FINE) / 500 µs (TURBO) / 1 ms (SUPER) / 4 ms (ULTRA) / 16 ms (MEGA) / 64 ms (TERA) |
| Supply Voltage | 10 VDC ~ 30 VDC (ripple ≤10% P-P) |
| Max Output Load Current | ≤100 mA |
| Residual Output Voltage | ≤2.2 V (10–100 mA) |
| Power Consumption | Normal: ≤910 mW; ECO ON: ≤840 mW; ECO FULL: ≤750 mW |
| Anti-interference Capacity | Up to 8 units side-by-side (TURBO mode) |
| Protection Functions | Reverse polarity, overcurrent, surge protection |
| Parameter | Specification |
| Housing Material | Polycarbonate |
| Mounting Method | Standard DIN rail mounting |
| Ambient Operating Temperature | -20 °C ~ +55 °C (non-freezing) |
| Storage Temperature | -25 °C ~ +70 °C |
| Allowable Ambient Light | Incandescent lamp ≤20,000 lux, Sunlight ≤30,000 lux |
| Vibration Resistance | 10–55 Hz, 1.5 mm double amplitude, 2 hours on X/Y/Z axis |
| Shock Resistance | 500 m/s², 3 shocks for each X/Y/Z axis |
| Cable Specification | Integrated 2 m cable |
| Protection Class | IP40 (amplifier body) |
| Approvals | UL, CSA, CE |
| Compliance | RoHS |
Brand
With the rapid development of industrial automation, KEYENCE, as a leading supplier of sensors and measuring instruments, is constantly developing and manufacturing newer and more reliable products to meet the demands of various manufacturing industries. In addition to high-quality products, the well-trained KEYENCE sales team also offers excellent services, ranging from solving application problems, providing technical sales support to responding quickly to users' requests. KEYENCE has always been committed to supporting a wide range of users and helping them become leaders in their industries. Company Information n nCompany Name: KEYENCE n nDate of Establishment: May 27, 1974 n nRegistered Capital: 2,451 million RMB (30,638 million Japanese yen) n nHead Office and Research Center: 1-3-14, Nakajima, Higashiyodo, Osaka n nNumber of Employees: 3,150 (March 2011) n nBusiness Content: Sensors, Measuring instruments, Image Systems, Control? Research on measuring instruments? Analytical instruments for development
Achievers Automation Limited has more than 14 years experience in the market of Industrial Automation, specialized in reselling factory sealed Probe, Sensor, DCS,isolator barrier, HMI, PLC,Adapter,Profibus connector and cable from Brands .
Below are the TOP BRANDS we handle in the past 14 years:
FAQ of Achievers
Q:Are the Products Genuine OEM Units?
A: These items have been certified by Achievers Automation Limited to be genuine OEM Units obtained through OEM or independent third-party channels.
Q:How will you arrange shipment?
A: We can arrange shipment based on your request. We have cooperated forwader who can arrange shipment via FedEx, DHL,TNT with good price.
Q:What is the warranty of goods?
A: One-year Warranty.
Product Tags:
|
|

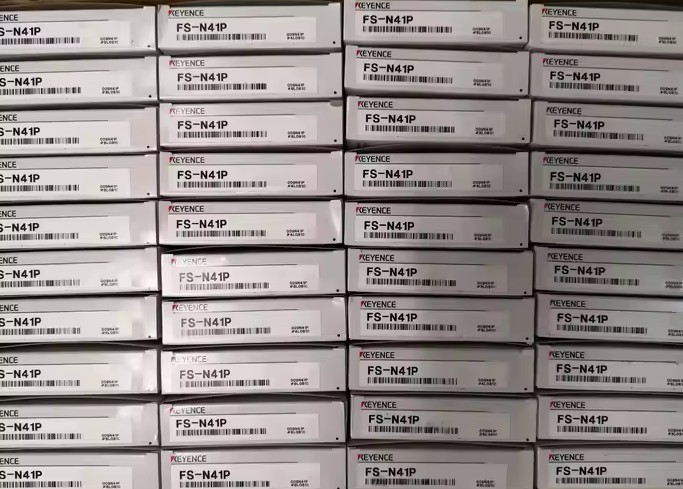

Keyence FS-N41P Digital Fiber Optic Sensor Amplifier Images
|
